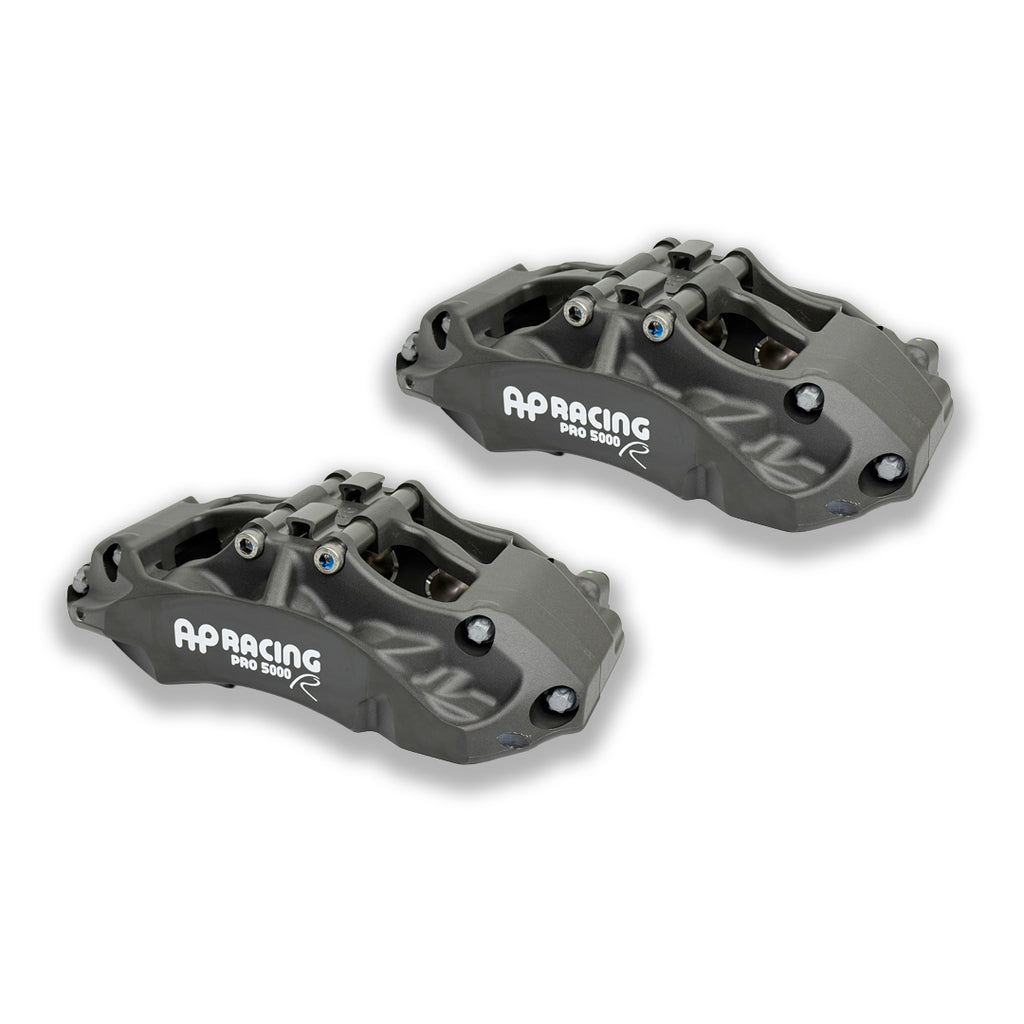

AP Racing Pro5000R CP9660-2S4L/3S4L Pair of Calipers Anodised Finish 6 Piston
Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece aluminium alloy body.
- Available with either Anodised or Nickel plated surface treatments.
- Radial mount, 180.0mm x 42.0mm centres.
- Suits Ø380.0mm Max or 356.0mm Min x 36.0mm Max or 32.0mm Min thick discs.
- Stainless Steel Pistons.
- High temperature seals.
- 4lb Anti-knockback springs fitted.
- Stainless Steel wear plates.
Part Numbers:
Anodised Surface Treatment
- Right Hand Caliper = CP9660-2S4L
- Left Hand Caliper = CP9660-3S4L
Brake Pad Information
|
CP3905D54
- Pad Area = 77.4cm²
- Pad Depth = 54.0mm
- Thickness = 18.0mm
|
| TECHNICAL SPECIFICATIONS |
|
| Piston Sizes - mm |
- Ø27.0 x 2
- Ø31.8 x 2
- Ø38.1 x 2 |
| Piston Area - cm² |
50.1 |
| Disc Diameter - mm |
- Max = 380.0mm
- Min = Ø356.0 |
| Disc Thickness - mm |
- Max = 36.0
- Min = 32.0 |
| Weight - No Pads = Kg |
2.78 |
| Hydraulic Threads |
M10x1.0 |
| Mounting Type |
Radial |
| Mounting Centres - mm |
180.0 |
| Mounting Offset - mm |
42.0 |
| Mounting Hole Ø - mm |
12.15 Nominal |
| PL Dimension - mm |
63.5 |
| Bleedscrew Tightening Torque - Nm |
17 |
